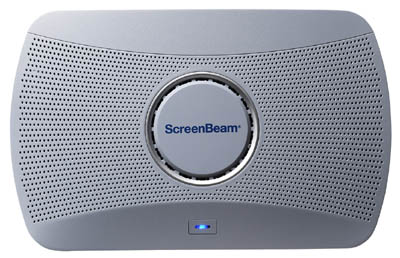

ScreenBeam 1000 EDU Gen 2 wireless display receiver
Model #: SBWD1000EDUG2
Wireless Screen sharing from any device, integrated Whiteboard application, digital signage, and instant notifications - in a single solution.

The ScreenBeam 1000 EDU Gen 2 is a Smart device designed to adapt and scale to modern K-12 classroom experiences. With its intuitive native wireless screensharing and an integrated collaborative whiteboard application, the ScreenBeam 1000 EDU Gen 2 enhances teacher and student engagement for better learning outcomes. ScreenBeam delivers app-free screen sharing on any device eliminating the need to download an app or keep a cable or dongle nearby. Teacher and guest devices have multiple ways to connect including local Wi-Fi mode, Miracast, Airplay, GoogleCast, provides configurable connectivity using peer-to-peer Wi-Fi Direct or over infrastructure. The new Whiteboard by ScreenBeam application enables collaborative Whiteboard interactivity without complex device connectivity. Running directly on the ScreenBeam device, Whiteboard is simply launched from the connected Interactive Flat Panel and requires no connected computer. ScreenBeam 1000 EDU Gen 2 delivers an affordable, easy teacher and student experience, with advanced technology to ensure simplicity and ready to expand with your growing technology needs.

Present from laptop, tablet or smartphone wirelessly

Native screen mirroring or extended desktop solution; no app, no dongle

Increased Memory and Storage for future expandability

Quick Switch Mode to switch between presenters without disconnecting

Optional configurable,secure, and isolated Wi-Fi hotspot

Integrated HTML 5.0-based digital signage player

Windows native wireless touch and inking, with ScreenBeam Ghost Inking

Integrated Whiteboard application with advanced interactive features

Multi-View Mode allows up to four devices shared on-screen

4K and interactive flat panel ready

Compatible OS/Device
Miracast: Windows 11/10 and Android
Airplay: MacOS 11+ and iOS 13+
Google Cast: ChromeOS/Chrome 98+ and Android 8+

Audio & Video Specifications
Native protocol: Miracast, Airplay, Google Cast
Video: H.264 compression
Audio: LPCM 2.0
Resolution: Up to 4K60
Protection: HDCP 2.x

Network Specifications
Ethernet: 1000Base-T RJ-45 LAN
Wireless (Miracast P2P & Wi-Fi Hotspot): 802.11ac 3x3 MIMO Dual-band 5GHz
Wireless (Infrastructure): 802.11ac 2x2 MIMO 2.4GHz and 5GHz (DFS)
BLE (Discovery): 2402-2480MHz
Authentication protocol: IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2, EAP-TLS

Hardware Specifications
Interfaces: 1 x HDMI Output, 1 x RJ-45, 1 x USB 3.0 Host Type-A, 2 x USB 2.0 Host Type-A, 1 x Analog 3.5mm Audio, 1 x DC Power Jack
Power: Input 12VDC 3A, Consumption: 8.4W Typical 24.8W Peak
Temperature: Operating 0* - 40*C (32* - 104*F), Storage -20* - 85*C (-4* - 185*F)
Humidity: Operating 20-80% non-condensing, Storage 10-90% non-condensing

Dimensions & Weight
Size: W 8.66 in x D 5.66 in x H 1.47 in (220mm x 144mm x 37.5mm)
Weight: 1lb 0oz (453.5g)

Mounting Option
Wall mount. Magnetic mounting kit. VESA 75x75mm.

Certifications
Compliant Standards: FCC, RED, RoHS, UL

1. Miracast requires device with Wi-Fi and Intel 802.11 AC or AX Wi-Fi or equivalent is recommended.
2. Display resolution and quality depend on Wi-Fi and or LAN network condition.
3. HDCP content protection only available for Miracast protocol.
